Shimpo TNP-10 Cap Torque Tester / Meter, 0-88.50 lbf-in / 0-10.00 Nm Capacity

Price: $ 1,275.00

Shimpo TNP Cap Torque Tester - Meter
Shimpo TNP Cap Torque Tester / Meter
Memory for 1000 values with USB Output
3 Ranges up to 90 Lb-in
Selectable units of measure: lbf-in, kgf-cm, N-m and N-cm
Includes Hi/Go/Lo Limits and LED Indicators

3 Ranges up to 88 In-lb
Sample Diameters up to 7.5" (190 mm)

The Shimpo CAP-TNP torque meter is a precision instrument that measures OPEN and CLOSE torque values for various applications. As a cap torque analyzer, the CAP-TNP repeatedly determines bottle closure and breakaway torque. It has a wide memory capacity capable of storing 1,000 data points in addition to Average, Maximum and Minimum values. A HI-LO comparator feature can be utilized for a large batch testing to ensure overall product quality.

The Shimpo CAP-TNP torque meter is USB capable for computer testing. Combined with the free Digitorq Software, additional analysis and testing can be performed.

The Cap-TNP is a portable device powered with internal rechargeable batteries or through an AC Adpater/charger. Designed with a small footprint it can easily be transferred to maximize use around the shop floor or the laboratory.


  • 0.5% F.S. Accuracy
  • Includes Hi/Go/Lo Limits and LED Indicators
  • Displays Torque values in, lb-in, Kgcm and Nm, Ncm
  • USB interface including FREE Digitorq Software
  • Captures Peak Opening, Peak Closing and Average torque values (CCW, CW)
  • Three (3) models offered covering small, medium and large sized containers
  • One touch operation, retains up to 1000 measurements in memory
  • Easy to read L.C.D.
  • Rechargeable NIMH batteries and / or Universal AC adapter
  • Small foot print, compact, space saver design
  • Open Mode:
    • Max value when opening
    • [CCW torque direction]
  • Close Mode:
  • Max value when closing
  • [CW torque direction]
  • Average Mode:
  • Continuous torque values in real time
  • Includes NIST Traceable Calibration Certificate
  • CE Certified
  • 2 Year Warranty

Photo Gallery

Torque Ranges

TNP-0.50-4.425 Lbf-in
0-0.500 Nm
0-50.00 Ncm
0-5099 gcm
0.001 Lbf-in
0.001 Nm
0.01 Ncm
1 gcm
TNP-20-17.70 Lbf-in
0-2.000 Nm
0-200.0 Ncm
0-20.39 Kgcm
0.01 Lbf-in
0.001 Nm
0.1 Ncm
0.01 Kgcm
TNP-50-44.25 Lbf-in
0-5.000 Nm
0-500.0 Ncm
0-50.99 Kgcm
0.01 Lbf-in
0.001 Nm
0.1 Ncm
0.01 Kgcm
TNP-100-88.50 Lbf-in
0-10.00 Nm
0-1000 Ncm
0-102.0 Kgcm
0.1 Lbf-in
0.01 Nm
1 Ncm
0.1 Kgcm


Overload protection150%
Sample Diameter Range (min to max)0.39" to 7.48" (10 - 190 mm)
Overload displayDisplay "OVR" on LCD (blinking on/off)
Main display4-digit LCD display Character height 12mm
Sub display3-digit LCD display Character height 7mm
Comparator displayHi, GO, Lo LED Indicators
Accuracy 0.5% full scale
Open modeMax vale when opening. Displays max counter clockwise torque.
Close modeMax value when closing. Displays max clockwise torque
Average modeReal time display. Displays max torque in real time
Display Update Time1, 2, 4 or 8 updates/second, user-set
Sampling Rate1000 times/second
Memory data number1000 data points (max)
Statistic processAverage value, max value and min value
Data outputUSB 1.1
PC softwareDigitorque software
AccessoriesUSB cable, AC adapter, 30mm chuck pin (4pcs), Manual
PowerBuilt in nickle hydride battery or Auto-ranging AC adapter (AC100 - 240V)

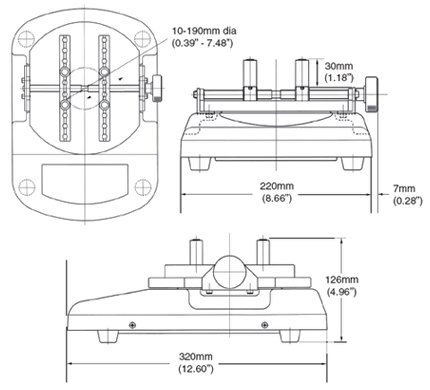

L x W x H
12.60" x 8.94" x 4.96"
(320 x 227 x 126mm)
Operation Temperature32 - 104F (0 - 40C)
Battery Life8 hours after full charge
Battery Recharge TimeMax. 16 hours
Battery TypeNiMH
Warranty2 Years



Related Products

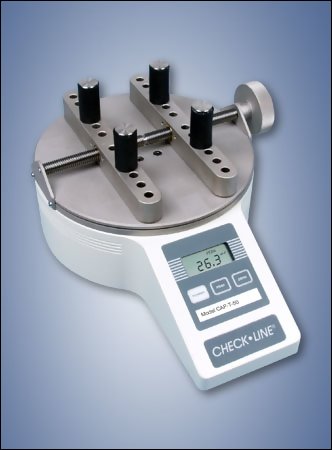

Cap Torque Tester / Closure Torque Tester

  • 3 Year Warranty
  • Accepts samples up to 7.5" (189.4 mm) dia.
  • Outstanding Value


Cap Torque Tester

  • Real time and peak mode (selectable)
  • Serial Output for connection to Printer or PC

Complete Kit

CAP-TNP includes, tester, set of four - 1" gripping pegs, AC adapter, calibration certificate, USB Cable with CD-Software and instruction manual.

complete kit


Shimpo TNP Cap Torque Tester / Meter - Features and Benefits
Shimpo TNP Cap Torque Tester / Meter - Instruction Manual
softwareTNP Cap Torque Tester / Meter - Software
Shimpo TNP Cap Torque Tester / Meter - Software Manual
Shimpo TNP Cap Torque Tester / Meter - Data Sheet
