Mark-10 MTT01-25 Cap Torque Tester CAP-TT01-25, 25 lb-in / 290 N-cm Capacity



Price: $ 1,325.25

Mark-10 CAP-TT01 Cap Torque Tester With Data Output
Mark-10 CAP-TT01 / Series TT01 Cap Torque Tester With Data Output
6 Ranges up to 250 lb-in / 28 N-m
Made in the USA

6 Ranges up to 250 lb-in / 28 N-m
Sample Diameters up to 7.5" (190 mm)

The Mark-10 Cap Torque Testers Series TT01/ CAP-TT01 cap torque tester accurately measures application and removal torque of bottle caps up to 250 lb-in (28 Nm). The CAP-TT01 is supplied with adjustable pegs to effectively grip a wide range of container shapes and sizes, while optional flat and adjustable jaws are available to secure unique profiles. A rugged aluminum housing, and simple, operation allow for use in production, lab an field environments.

Accuracy of 0.3% and a sampling rate of 7,000 Hz ensure reliable and consistent test results. The CAP-TT01 can display torque in Oz-in, Lb-in, Kg-cm, N-m and N-cm units.

The CAP-TT01 includes productivity-enhancing features, including USB, RS-232, analog outputs, automatic data output and zeroing, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. Password protection is provided to prevent unauthorized changes to settings and calibration.

CAP-TT01 testers include MESUR Lite data acquisition software. MESUR Lite collects continuous or single point data. Data stored in the CAP-TT01's memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.


line

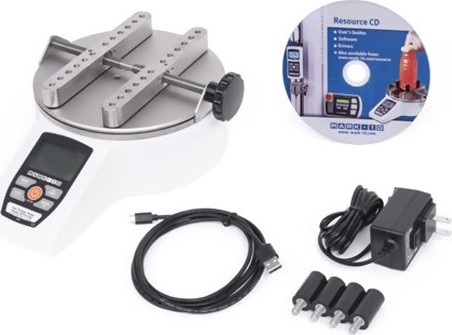

Kit Contentsline

  • Mark-10 CAP-TT01 Cap Torque Tester With Data Output
  • Sample gripping posts (4 - four)
  • USB cable
  • AC adapter
  • Battery
  • Resource CD
  • Certificate of calibration without data


line
Photo Gallery
line

ABQ ABQ ABQ ABQ ABQ ABQ ABQ

line
Features
line

  • Moveable posts and optional jaws accommodate a wide range of sample shapes and sizes
  • Automatic output, data storage, and zeroing upon bottle cap removal helps automate testing processes
  • Password protection prevents unauthorized changes
  • High-speed 7,000 Hz sampling rate accurately captures peak torque values
  • 5 selectable units of measure including Oz-in, Lb-in, Kg-cm, N-m and N-cm
  • USB, RS-232, Mitutoyo, and analog outputs
  • 1,000-point data memory with statistics and outputs
  • Programmable set point indicators and outputs for pass/fail determination
  • Configurable audio alarms and key tones
  • MESUR Lite data collection software included
  • Measures container diameters from 0.5" to 7.5" (12.7-190 mm)
  • Includes NIST Traceable Calibration Cert. A long form cert with data is optionally available.
  • First & second peak torque detection is useful for measuring slip and breakaway torques for tamper evident closures

line
Video
line

line
Torque Ranges line

Model ozFin lbFin kgFcm Ncm Nm
CAP-TT01-12 1920.1 120.005 140.01 1350.1 1.350.001
CAP-TT01-25 4000.2 250.01 280.02 2900.2 2.90.002
CAP-TT01-50 8000.5 500.02 580.05 5700.5 5.70.005
CAP-TT01-100 16001 1000.05 1160.1 11500.5 11.50.005
CAP-TT01-150 NA 1500.05 1730.2 16951 170.01
CAP-TT01-250 NA 1000.05 2880.5 28242 280.05

line
Typical Torque Values (LBF-IN)
line

10 5 8 4 15 9 10 12 6 10 5 18 11 12 18 9 15 7 24 14 17 22 11 18 9 33 20 22 28 14 24 12 44 26 29 45 22 36 18 65 40 45
Cap dia.in mm Phenolic/ Urea Cap On Glass Phenolic/UreaCap on Plastic PP/PE Capon Glass PP/PE Capon Plastic
Close Torque Open Torque Close Torque Open Torque Close Torque Open Torque Close Torque Open Torque
15 8 4 6 3 12 7 8 4
18 9 5 7 4 13 8 9 5
20 5
22 11 6 9 5 17 10 11 6
24 6
28 14 7 12 6 21 12 14 7
33 8
38 20 10 17 7 29 17 19 9
43 11
48 24 14 20 10 26 22 24 12
58 14
70 35 18 28 14 52 32 35 17
89 22
100 50 25 40 20 75 38 50 25


line
Specifications
line

Accuracy 0.3% of Full Scale
Sampling rate 7,000 Hz
Power AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.
Battery Life Backlight on:up to 7 hours of continuous useBacklight off:up to 24 hours of continuous use
Measurement units oz-in, lb-in, kg-cm, N-m, N-cm
Outputs USB / RS-232:Configurable up to 115,200 baud.
Mitutoyo:
Serial BCD suitable for all Mitutoyo SPC-compatible devices.
Analog:
1V DC, 0.25% of full scale at capacity.
General
Configurable Settings Digital filters, outputs, automatic output/data storage/zero, automatic shutoff, default settings, key tones, backlight, audio alarms, passwords, calibration
Safe overload 150% of full scale (display shows "OVER" at 110% and above)
Weight 8.4 lb (3.8 kg)
Included items Universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURTM Lite software, MESURTMgauge DEMO software, and user's guide), and NIST-traceable certificate of calibration with data.
Warranty 3 years (see individual statement for further details)
Container Diameter 0.5" to 7.5" (12.7-190 mm)


line
Related Productsline

AC1036Calibration Kit for CAP-TA
  • Calibration Kit
related

line

MESURgaugeMesurgauge Load & Travel Analysis Software
  • Windows 7 Compatible
related

line

CAP-TNPDigital Cap Torque Tester

  • 0.5% F.S. Accuracy
  • USB interface including FREE Digitorq Software
related

line

CAP-DTXSDigital Cap Torque Tester

  • Test cap loosening (CCW) and tightening (CW) torque
  • 1000 data point memory capacity
related

line

P-U1124SB Dot Matrix Serial Printer related

line
Downloads
line

Mark-10 CAP-TT01 Cap Torque Tester With Data Output - User Guide
Mark-10 CAP-TT01 Cap Torque Tester With Data Output - Instruction Manual

line
Buy Now line


Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Product Price
Mark-10 MTT01-25 Cap Torque Tester CAP-TT01-25, 25 lb-in / 290 N-cm Capacity $1,325.25
Accessories Price
CT001 Flat Jaws for TT01, pair $75.00
CT002 Carrying Case for TT01 $195.00
CT003 Adjustable Jaws for TT01, Pair $350.00
CT004 Spare set of 4 posts, 1.25 in (included with TT01) $150.00

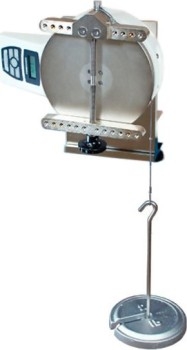

AC1036 Calibration Kit for TT01 (Weights Not Included) $650.00
15-1004 MESURgauge Software $495.00
08-1026 Spare Rechargeable Battery $20.00
CT005 Set of 4 posts, 2.5 inch $175.00
CT006 Set of 4 posts, 4 inch $200.00
NISTCAL-10PT Upgrade Calibration Cert with 10 Data Points CERT $75.00
AC1030 Spare AC Adapter, 110V $40.00
CT007 Kit of 4 posts of each length (12 total) $400.00
P-190 Battery-Powered Portable Serial RS-232 Impact Printer supplied with AC-Adapter - Requires 09-1163 Cable $350.00
09-1163 Serial Output Cable DB9 $75.00
