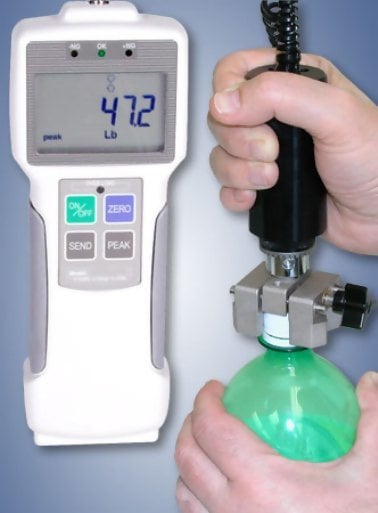

Imada CAP-HT-RS Hand-Held Cap Torque Tester With Data Output & Memory



Price: $ 0.00

Imada CAP-HT-RS Hand-Held Cap Torque Tester With Data Output & Memory
Hand-Held Cap Torque Tester with Data Output & Memory
4 Ranges up to 85.00 lbf-in / 100.0 Kg-cm / 1000 N-cm
Units of measure: lbf-in, kgf-cm, and N-cm (selectable)
Programmable high/low setpoints

The Imada CAP-HT-RS digital cap torque tester offers programmable high/low setpoints for go/no-go testing. ORANGE lights up for measurements less than Low setpoint, GREEN for between High and Low setpoint, and RED for over High setpoint.

For cap diameters of 0.65 - 1.55 in (16.5 - 39.0 mm)

Store up to 1,000 values in memory, which can be displayed or transmitted using serial output. Use the real time mode to display torque transients, or the peak mode to capture the peak torque achieved during a test. Selectable measuring units of lbf-in, kgf-cm, or N-cm.

The Imada CAP-HT-RS digital cap torque testers are sold in kits which include the gauge, sensor, G1053 Cap Grip, six foot cable, and AC adapter/charger. Built-in NI-MH rechargeable batteries.

line
Features
line

  • User-selected units of Pounds, Kilograms or Newtons
  • RS-232C, Digimatic and Analog outputs
  • Runs on internal NiCad batteries or AC adapter
  • 1000 Data memory for computer download
  • Display "real-time" or "peak" force
  • Both clockwise and counterclockwise operation
  • Tare function
  • For cap diameters of 0.65 - 1.55 in (16.5 - 39.0 mm)
  • Overload capacity 200% of F.S.
  • Ergonomic design with non-slip rubber grip, heavy duty metal construction
  • Overload alarm and output signal
  • Includes NIST Calibration Certificate
  • 2 Year Warranty
  • ISO/IEC 17025 Long-form Certificate & Test Data is optionally available

line
Force Ranges
line

ModelCapacityResolution
CAP-HT-4-RS70.00 ozf-in
5.000 kg-cm
50.00 N-cm
0.01 oz-in
0.001 Kg-cm
0.01 N-cm
CAP-HT-15-RS15.00 lbf-in
20.00 Kg-cm
200.0 N-cm
0.01 lb-in
0.01 Kg-cm
0.1 N-cm
CAP-HT-40-RS40.00 lbf-in
50.00 Kg-cm
500.0 N-cm
0.01 lb-in
0.01 Kg-cm
0.1 N-cm
CAP-HT-85-RS85.00 lbf-in
100.0 Kg-cm
1000 N-cm
0.1 lb-in
0.1 Kg-cm
1 N-cm
