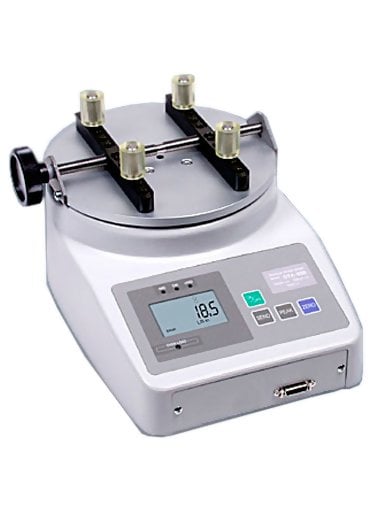

Imada DTX2 Cap Torque Tester With Memory & Data Output



Price: $ 0.00

Imada DTX2 Cap Torque Tester With Memory & Data Output
Memory for 1000 values with USB Output
3 Ranges up to 90 Lb-in
Selectable units of measure: lbf-in, kgf-cm, N-m and N-cm

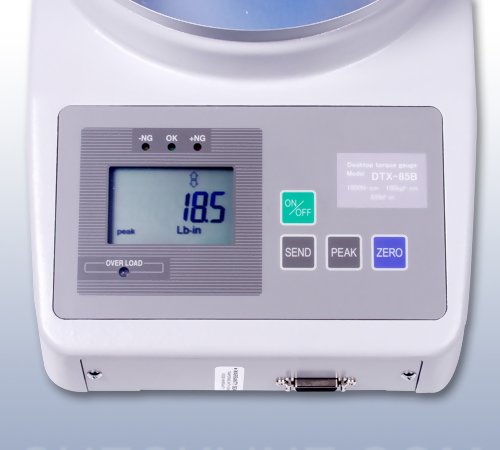

Includes Hi/Go/Lo Limits and LED Indicators

3 Ranges up to 85 lbf-in / 100.0 kgf-cm / 1000 N-cm
Accuracy: 0.5% F.S. 1 LSD

The new easy-to-use Imada DTX2 cap torque tester accurately measures twist on and twist off force. The tester offers programmable high/low setpoints for go/no-go testing. ORANGE lights up for measurements less than Low setpoint, GREEN for between High and Low setpoint, and RED for over High setpoint.

Store up to 1000 values in memory, which can be transmitted using the serial output. Use the real time mode to display torque transients, or peak mode to capture the peak torque achieved during a test. Selectable measuring units of lbf-in, kgf-cm, or N-cm.

Cap testers include AC adapter/charger and built-in NiCad rechargeable batteries, 1" high standard pegs (optional long pegs available).

line
Features
line

  • 2 Year Warranty
  • Suitable for containers from 1/2" - 7" (13 - 178mm) in diameter
  • lbf-in, kgf-cm, and N-cm units are selectable
  • Real time and peak mode (selectable)
  • 1000 Data memory for computer download
  • Includes NIST-Traceable calibration certificate
  • Overload capacity 200% of F.S.
  • Both clockwise and counterclockwise operation
  • Can be operated with internal rechargeable battery or AC adapter
  • ISO/IEC 17025 Long-form Certificate & Test Data is optionally available

line

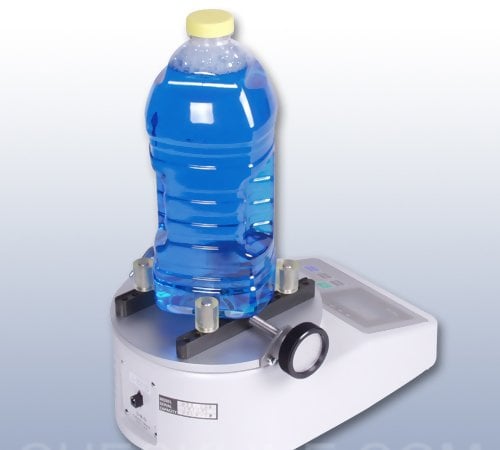

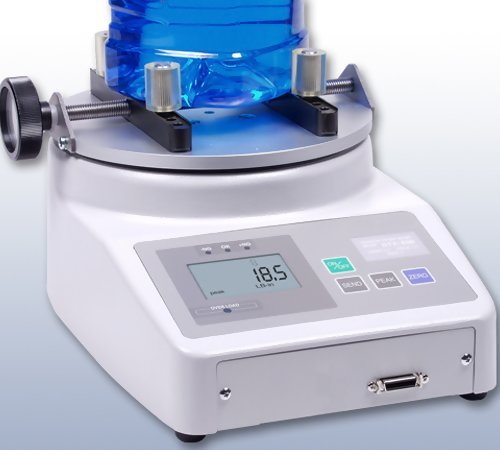

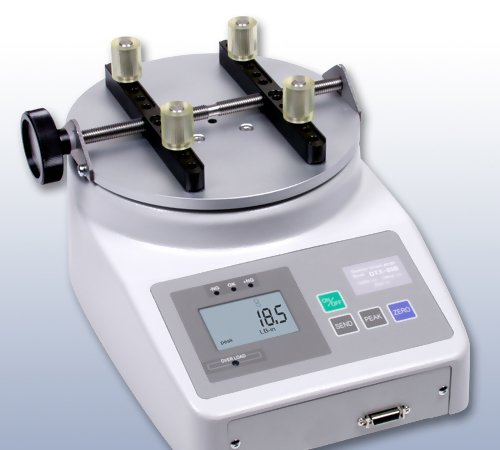

Photo Gallery
line

line
Force Ranges
line

ModelCapacity
lbf-in
Capacity
kgf-cm
Capacity
N-cm
DTX2-15B15.00 (0.01 lbf-in)20.00 (0.01 kgf-cm)200.0 (0.1 N-cm)
DTX2-40B40.00 (0.01 lbf-in)50.00 (0.01 kgf-cm)500.0 (0.1 N-cm)
DTX2-85B85.00 lbf-in(0.1 lbf-in)100.0 kgf-cm(0.1 kgf-cm)1000 N-cm(1 N-cm)


line
Typical Torque Values (LB-IN)
line

Cap dia.
in mm
Phenolic/ Urea
Cap On Glass
Phenolic/Urea
Cap on Plastic
PP/PE Cap
on Glass
PP/PE Cap
on Plastic
Close TorqueOpen TorqueClose TorqueOpen TorqueClose TorqueOpen TorqueClose TorqueOpen Torque
15846312784
18957413895
2010584159105
22116951710116
241261051811126
281471262112147
331891572414178
3820101772917199
43221118933202211
482414201026222412
582814241244262914
703518281452323517
894522361865404522
1005025402075385025


lineSpecifications
line

Max Sample Diameter1/2" - 7" (13 - 178mm)
Gross Shipping Weight14 lbs
Shipping Dimensions17 x 13 x 10" (approx.)
Pegs1" (standard)
4" (optional)


line
Dimensions
line

dimensions

line
Related Products
line

CAP-TNP
Digital Cap Torque Tester

  • 0.5% F.S. Accuracy
  • USB interface including FREE Digitorq Softwar
related

line

CAP-TA
Cap Torque Tester

  • Measures in real time or peak torque modes
  • Data output via RS-232 and Mitutoyo
related

line

SW-1
Data Acquisition Software for Force Gauges & Torque Gauges

  • Full SPC and graphing capabilities
  • Automates your data collection
  • hProvides a running log of all measurements along with a chart of the data as well as statistical information
related

line

NIST CALrelated

line

SBK-492
Calibration Fixture for DTX2 Cap Torque Tester
related

line
Downloads
line

DTX2 Cap Torque Tester With Memory & Data Output - Data Sheet
DTX2 Cap Torque Tester With Memory & Data Output -Instruction Manual

line
Buy Now
line


Order Online
Check the items you would like to order then click "Add To Cart". Items typically ship within 1 Week
Accessories Price
ISO-17025 ISO/IEC Certificate & Test Data $234.00
SW-1X Software for DTX2 Torque Gauge $285.00
DTX2-4PEG 4 in Pegs (4 pieces) $315.00
CB204 RS232 Serial Output Cable $108.00
U-1124ST Printer for DTX2 (Requires CB204 and DB-1XP) $601.00
DB-1XP Baud Rate Converter Button $208.00
SBK-494 Calibration Fixture for DTX2 $1,395.00
AD120 Replacement Power Supply $65.00
