Low Prices on Imada CAP-DTXS-40 Digital Cap Torque Tester

3 Ranges up to 85 lb-in

Selectable real time and peak modes

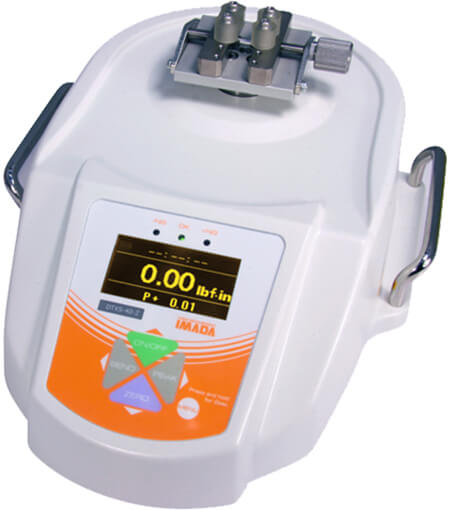

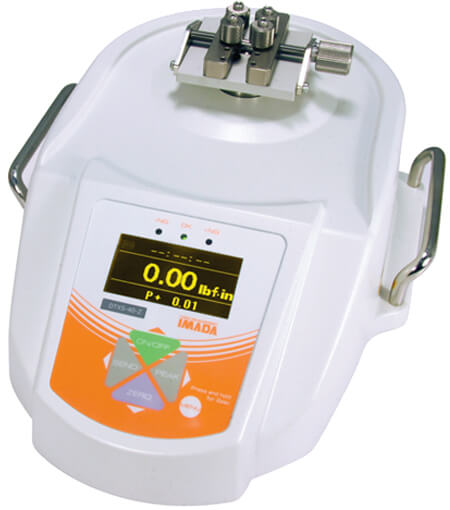

The Imada CAP-DTXS Cap Torque Testers is an easy-to-use, high-precision cap torque tester that features a large electroluminescent display that clearly indicates the real-time and peak torque. Color-coded LED indicators alert the user to Go/NoGo conditions. Orange lights indicate a value less than low setpoint, green lights between high and low, and red for over the high.

The Imada CAP-DTXS Cap Torque Testers is supplied with ZTLogger data acquisition software. It can download data from the tester memory or captures continuous data at 10 points/second. Zero the tester or capture data while at the computer. All tester programming can be set and saved from the software.

Optional Force Recorder data acquisition software is designed to process up to 2,000 data per second.

All Imada CAP-DTXS Cap Torque Testers include a 3 Point Calibration Certificate traceable to NIST. The imdada DTXS cap torque testers include AC adapter/charger and built-in Ni-MH rechargeable batteries, 1 high standard pegs (optional long pegs and calibration kit available).

line
Features
line

Test cap loosening (CCW) and tightening (CW) torque
Selectable real time and peak modes
USB, RS-232, Digimatic and Analog outputs
Selectable units of lbf-in, kgf-cm, N-m, ozf-in, N-cm
1000 data point memory capacity
Programmable high/low setpoints with color-coded LED indicators and audible signal
Overload and low battery indicators
200% overload capacity
DTXS accommodates samples from 20 up to 160 mm (0.787" - 6.30")
Four rubber-coated 1 inch pegs are included with DTXS
Optional "Small Table" accommodates samples from 7 up to 50 mm (0.275" - 2")
Optional Peg sizes/material available
Include 3 Point Calibration Certificate traceable to NIST. ISO 17025 Calibration Certification optionally available
2 Year Warranty

line
Specifications
line

Accuracy	0.5%F.S.1digit
Unit of measurement	lbf-in, kgf-cm, N-m, ozf-in, N-cm
Display	4-digit
Display update	10 times/ sec
Auto Zero Reset	1.0 to 60 seconds (selectable)
Sampling rate	2,000 samples/second (max) thru the USB port
Safe overload rating	Approx. 200%
Operating Environment	Temperature: 0-40 C Humidity: 20 -80%RH
Output	Outputs USB, RS-232C, Digimatic and 2 VDC analog output (D/A),Comparator 3 steps (-NG/OK/+NG), Overload alarm
Overload warning	Approx.110%F.S. (Warning message and alarm )
Sensitivity	Max, High, Medium, Low (selectable)
External connecting switch	SEND (a point of contact holding), Zero reset, Peak, ON/OFF setting
Auto Power Off	5, 10, minutes or OFF (selectable)
Power	Built-In Rechargeable Ni-MH battery pack or via AC-Adapter (100-240V AC)
Battery Life	approx. 8 hours (recharge time approx. 10 hours)
Battery Indicator	Indicates three charge states high, medium and low
Plug Type	USA Blade Type (Select Euro Plug Adapter for use in 230V Countries)
Weight	Approx. 10 Lbs/4.5kg (Including Standard table and Standard pins)
Warranty	2-Years

line
Torque Ranges
line

Model	CAP-DTXS-15	CAP-DTXS-40	CAP-DTXS-85
lbf-in	15.00 (0.01 lbf-in)	40.00 (0.01 lbf-in)	85.0 (0.1 lbf-in)
kgf-cm	20.00 (0.01 kgf-cm)	50.00 (0.01 kgf-cm)	100.0 (0.1 kgf-cm)
N-cm	200.0 (0.1 N-cm)	500.0 (0.1 N-cm)	1000 (1 N-cm)
Nm	2.000 (0.001 Nm)	5.000 (0.001 Nm)	10.000 (0.01 Nm)
ozf-in	240.0 (0.1 ozf-in)	640.0 (0.1 ozf-in)	1360 (1 ozf-in)

line
Optional Small Table
line

Clamps diameters from 7mm ~ 50mm

DT-ST	DT-ST-01	DT-ST-02
Small table with standard pegs	Small table with steel pegs	Small table with long pegs
